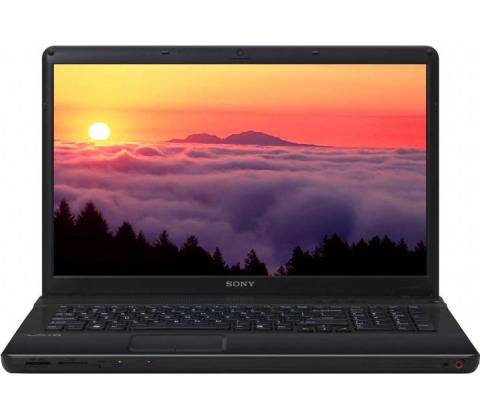

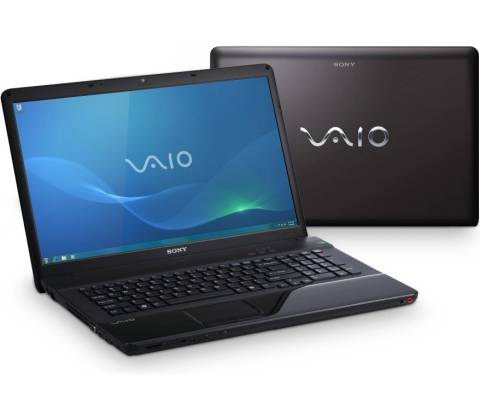

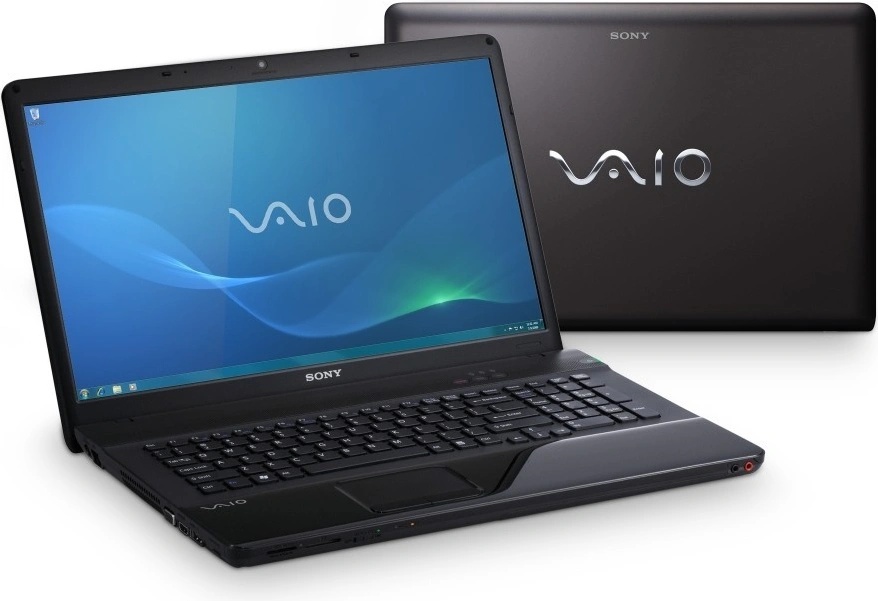

Sony VAIO EC3M1E/BJ

Operating System Genuine Windows® 7 Home Premium 64bit

Microsoft® Windows® Service Pack -

Architecture

Platform -

Chipset Intel® HM55 Express Chipset

CPU

Processor Name Intel® Core™ i5-460M Processor

Power and Performance with Intel® Turbo Boost Technology

Processor Speed (GHz) 2.53 with Turbo Boost up to 2.80

L2 Cache (MB) -

L3 Cache (MB) 3

Frontside Bus (MHz) -

Number of Cores 2

Colour

Cover Colour /BJ : Matte Black

Memory

Memory Size (GB) 4

Memory Specification PC3-8500

Memory Type DDR3 SDRAM

Memory Speed (MHz) 1066

Max. Supported Memory (GB) 8

Drives

Hard Drive Type Serial ATA

Hard Drive Capacity (GB) 500

Hard Drive Speed (rpm) 5400

Optical Drive Type DVD SuperMulti Drive

CD Read 24x

CD-R Read / Write /

CD-RW Read / Write 24x/10x

DVD Read 8x

DVD-R DL Read / Write /

DVD-R Read / Write 8x/8x

DVD-RW Read / Write 8x/6x

DVD+R DL Read / Write 8x/6x

DVD+R Read / Write 8x/8x

DVD+RW Read / Write 8x/8x

DVD-RAM Read / Write /

BD-ROM Read -

BD-R Read / Write -

BD-R DL Read / Write -

BD-RE Read / Write -

BD-RE DL Read / Write -

Screen

Screen Type VAIO Display

Diagonal Size (cm) 43.8

Diagonal Size (in) 17.3

Resolution WXGA++ (1600x900)

Aspect ratio Wide(16:9)

Max Resolution External Display 1920 x 1200

Graphics

Graphics Card Name ATI Mobility Radeon™ HD 5650 Graphics

Video RAM memory (MB) 1GB

Total Graphics Memory TBD

Comments Total Available Graphics Memory refers to the classification of graphics memory, which varies depending on the operating condition, version of device driver and system memory size.

Interfaces

USB 3.0 Port(s) -

USB 2.0 Port(s) Hi-Speed USB (USB 2.0) x3 e-SATA/USB Port 1x

USB Connector Type Type-A i.Link 4-pin (IEEE1394) -

Docking Station Interface -

Memory Stick™ Slot(s) Memory Stick Duo x1, SD memory card x1

Memory Stick™ Function(s) Memory Stick PRO-HG compatible, MagicGate [function]

Microphone Jack Stereo, Mini Jack x1

Headphone Jack Stereo, Mini Jack x1

SD Card Slot SDHC,SDXC compatible, Copyright protection (CPRM)

HDMI Output x1

VGA Output Yes

Express Card Slot 34mm x1

Network Connectivity

Modem (RJ-11 Direct Port) -

Ethernet (RJ-45 Direct Port) Yes

Ethernet Type 1000BASE-T/100BASE-TX/10BASE-T

Wireless LAN Yes

Wireless LAN Type IEEE 802.11b/g/n

Wireless LAN Max. Date Rate (Mbps) 150

Built-in WWAN No

WWAN Module -

WWAN Download/Upload speeds -

WiMAX No

WiMAX Type -

Bluetooth Yes

Bluetooth (version) Bluetooth standard Ver. 2.1+EDR

Bluetooth Range (m) max. 10m

Bluetooth Max. Data Rate (Mbps) 3

Security

Security Chip -

Fingerprint Sensor -

HDD Shock Protection -

Audio

Built-in Speakers Internal, Stereo speakers

Built-in Microphone Internal, Monaural microphone

Dolby Codec Dolby Home Theater® v3

Noise Cancelling -

S-Master -

Built-in Camera

Specification MOTION EYE™

Effective Pixels 640 x 480

Image Sensor (megapixels) 0.3

Keyboard

Stroke (mm) 2.0

Key Pitch (mm) 19.05

Numeric Keypad Yes

Touch Pad Touchpad (Gesture supported)

Pointing Stick -

BackLit -

Other Features

Instant On Quick Web Access

Special Buttons WEB Button, VAIO, Assist

Auto Luminance Control No

Kensigton Lock Yes

Software

Solution Portal VAIO Gate

Audio

Photo/Video PMB VAIO Edition

Multimedia Media Gallery

Home Network VAIO Media plus

Support VAIO Care

Utilities VAIO Transfer Support, VAIO Update, VAIO Smart network

Office Application Adobe® Reader® 9, Microsoft ® Office Starter 2010

Security & Backup McAfee (60 days free virus update), Norton Online BackUp Trial

SONY Tools Remote Keyboard with PlayStation 3,Remote Play with PlayStation 3

Internet Google Chrome Browser (Default), Internet Explorer® 8

Supplied Accesories

AC Adaptor VGP-AC19V31

Power Cord Yes

Documentation Pack Yes

Dimensions

Depth Main Unit (mm) 273.8

Height Main Unit (mm) 31.9

Width Main Unit (mm) 409.1

Weight with Supplied Battery (Kg) 3.3

Primary Battery

Model Name VGP-BPS22

Battery Type Li-Ion

Power 38.85 Wh(11.1V/3500mAh)

Battery Life time (minutes) 2,5

Battery Charge time (minutes) 3,5

Battery Life Disclaimer Actual battery life will vary depending on your specific hardware and software configurations. Benchmark: MobileMark 2007
