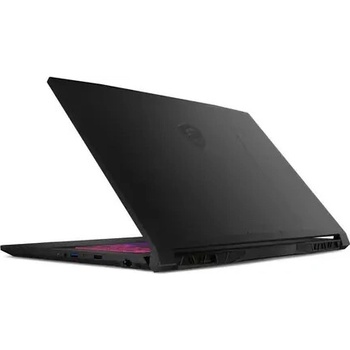

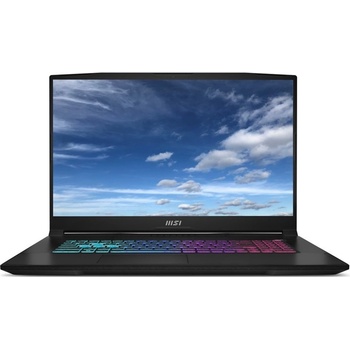

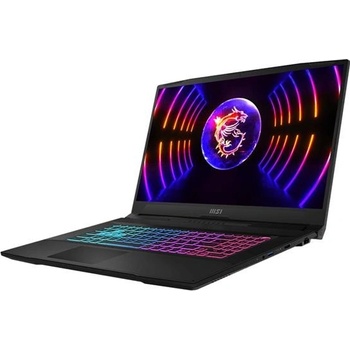

MSI Katana 17 B13VEK-1464XCZ

MSI Katana 17 B13VEK-1464XCZ, i5-13420H/16GB/1TB SSD/RTX 4050, 6GB/17,3" FHD IPS, 144Hz/Bez OS/černá

MKT Spec Katana 17 B13VEK-1464XCZ

System/Barebone System

Chassis Color

Color ID4(BB)/Black-Black-Black-Black

Chassis Material

A Side Plastic

B Side Plastic

C Side Plastic

D Side Plastic

Display

Screen Size 17.3

Resolution IPS-Level FHD

Pixel 1920x1080

LCD Features ANTI-GLARE

Screen Touch Non-touch

Frame Rate 144Hz

Response Time Tr+Tf 25ms

Color Range 45%

HDR Value N/A

Brightness N/A

CPU

CPU Type 8 CORE

CPU Core Name RAPTOR LAKE

CPU Socket FCBGA-1744pin

CPU Number i5-13420H

CPU Clock 2.1GHz

CPU Cores 8

Chipset

Chipsets N/A

Discrete Graphics

GPU1 Vendor NVIDIA

GPU1 MKT Name GeForce RTX 4050

GPU1 Number RTX 4050

CPU and GPU Combined Power

Combined Power_Website N/A

Cooling

Thermal Cooler Boost 5

Fan 2

Fan Technology N/A

Pipe 6

Vapor Chamber N/A

Video Memory

GPU1 VRAM Size 6GB

GPU1 VRAM Type GDDR6

Integrated Graphics

GPU1 Graphics_Website Intel® UHD Graphics

Memory

Memory Size 8GB*2

Memory Type DDR5-5200

Memory Form N/A

Memory Speed 2800(5600)MHz

Memory Slot and Max Capacity

Memory Slot 2 Slots

Storage

SSD Interface PCIe GEN4x4 w/o DRAM NVMe

SSD Form Factor M.2-2280 M-Key

SSD Size 1TB*1

HDD1 Interface N/A

HDD1 Form Factor N/A

HDD size N/A

HDD1 RPM N/A

ODD Type N/A

Multi Bay N/A

SSD Remark "Please consult service center for upgrading SSD."

Storage Slot

SSD (NVMe PCIe Gen)_Website 2x M.2 SSD slot (NVMe PCIe Gen4)

LAN

LAN_Website Gigabit Ethernet

LAN REALTEK/RTL8111H-VB-CG

RJ45 1x

Wi-Fi/ Bluetooth

WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3

WLAN Version Wi-Fi 6E+BT

WLAN/BT INTEL/AX211.NGWG.NV

I/O Ports

Audio Line In N/A

Audio Line Out N/A

Digital out SPDIF N/A

USB Ports

Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A

Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A

Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A

Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A

Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A

Type-C (USB3.2 Gen2 / DisplayPort™) N/A

Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) N/A

Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A

Thunderbolt™ 4 (DisplayPort™) N/A

Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A

Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A

Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) N/A

Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A

Type-C (USB3.1 Gen1 / DisplayPort™) NA

Type-C (USB3.2 Gen1 / DisplayPort™) 1x

Type-C USB3.1 Gen2 N/A

Type-C USB3.2 Gen2 N/A

Type-C USB3.2 Gen2 with PD charging N/A

Type-C USB3.1 Gen1 N/A

Type-C USB3.2 Gen1 NA

Type-A USB3.1 Gen1 N/A

Type-A USB3.2 Gen1 2x

Type-A USB3.1 Gen1/ QC3.0 N/A

Type-A USB3.2 Gen1/ QC3.0 N/A

Type-A USB3.1 Gen2 N/A

Type-A USB3.2 Gen2 N/A

Type-C USB3.2 Gen2x2 N/A

Type-A USB3.1 N/A

Type-C USB3.0 N/A

Type-A USB3.0 N/A

Type-A USB2.0 1x

USB3.2 Gen 2 Type-C(connect to computer) N/A

Card Reader

CardReader N/A

Smart Card Reader N/A

Video Ports

VGA Out N/A

HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)

DisplayPort NA

Mini Display Port N/A

Keyboard

Keyboard Types_Website 4-Zone RGB Gaming Keyboard

Keyboard Keys 99KEYS

Keyboard Backlit Y

Keyboard Numeric Yes

Keyboard Color BLACK

Keyboard Language CS Wleft Nokr

Touchpad

Touchpad NA

WebCam

WebCam HD type (30fps@720p)

Webcam Feature N/A

Audio Port

Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack

Audio

Audio Speaker 2x 2W

Audio Woofer NA

Audio Mic N/A

AC Adapter

Adaptor Output 200W adapter

Adaptor 200W

Adaptor Input 90-264Vin

Adaptor Unit Weight (g) 630

Power Cord Unit Weight (g) 126

Battery

Battery Type 3CELLS/3S1P

Whrs 53.5 Whrs

Mah 4700 Mah

Battery Unit Weight (g) 211

Operating Systems

OS N/A

OS Type Free DOS

Copilot+ PC Certified N/A

Microsoft Office

OS-Office_Website N/A

Dimension (WXDXH)

Dimension 398 x 273 x 25.2 mm

Weight (W/ Battery)

Weight 2.6 kg

Security

Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0

Certification

Certification Type_Website NA

Sustainability

EPEAT_Website N/A

Sensor

Fingerprint_Website N/A

Fingerprint (Optional) N/A

Proximity Sensor N/A

NFC (Optional) N/A

Warranty

Warranty 24M

Xbox Game Pass

Xbox Game Pass N/A

Xbox Game Pass Remark N/A

Accessory

Accessory_Website

Extra Bag N/A

Extra Mouse N/A

Remark

I/O Ports Remark N/A

Software

Software Nvidia GeForce Experience, Nahimic 3, Gaming Mode, MSI App Player, Mystic Light, Game Highlights, MSI Companion, Crosshair, Battery Master, MSI Center, Animaze, Discrete Graphics Mode, Ambient Silent AI, Smart Auto

Model Info

Series Name Gaming

Segment Name GF

Segment Name2 Katana17B

Segment Name3 Katana17 B13VEK

Barcode Info

EAN 4711377290463
